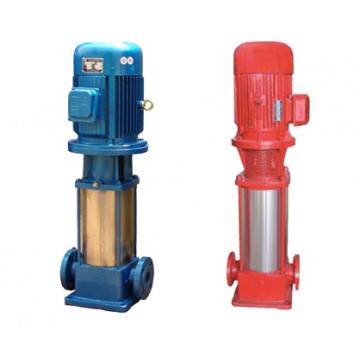

GDL立式多级管道离心泵
一、GDL立式多级管道离心泵 特点原理及图片:GDL立式多级管道离心泵是新型的立式多级离心泵，具有节能、占地面积小、安装方便、性能稳定等特点。多级管道泵的外套用1Cr18Ni9Ti优质不锈钢，轴封用耐磨机械密封，无泄漏，使用寿命长。以水力平衡解决轴向力，因而立式多级管道泵运转平稳，低噪音，安装条件更加优于DL型立式多级泵，可以简便安装于任一段水平的管路上。立式多级管道泵完全能满足高层建筑、深井矿等给排水及消防设施的技术需求，是广大行业冷热水或一般普通介质或理化性质类似水等液体输送增压的最佳泵型选择。
产品详情
二、GDL立式多级管道离心泵 性能参数
| 型 号 | 流量 (m3/h) | 扬程 (m) | 吸程 (m) | 电机功率 (KW) |
| 25GDL2-12×3 | 2 | 36 | 7.5 | 1.1 |
| 25GDL2-12×4 | 2 | 48 | 7.5 | 1.1 |
| 25GDL2-12×5 | 2 | 60 | 7.5 | 1.5 |
| 25GDL2-12×6 | 2 | 72 | 7.5 | 1.5 |
| 25GDL2-12×7 | 2 | 84 | 7.5 | 2.2 |
| 25GDL2-12×8 | 2 | 96 | 7.5 | 2.2 |
| 25GDL2-12×9 | 2 | 108 | 7.5 | 2.2 |
| 25GDL2-12×10 | 2 | 120 | 7.5 | 3 |
| 25GDL2-12×11 | 2 | 132 | 7.5 | 3 |
| 25GDL2-12×12 | 2 | 144 | 7.5 | 3 |
| 25GDL4-11×3 | 4 | 33 | 7.5 | 1.1 |
| 25GDL4-11×4 | 4 | 44 | 7.5 | 1.5 |
| 25GDL4-11×5 | 4 | 55 | 7.5 | 2.2 |
| 25GDL4-11×6 | 4 | 66 | 7.5 | 2.2 |
| 25GDL4-11×7 | 4 | 77 | 7.5 | 3 |
| 25GDL4-11×8 | 4 | 88 | 7.5 | 3 |
| 25GDL4-11×9 | 4 | 99 | 7.5 | 3 |
| 25GDL4-11×10 | 4 | 110 | 7.5 | 4 |
| 25GDL4-11×11 | 4 | 121 | 7.5 | 4 |
| 25GDL4-11×12 | 4 | 132 | 7.5 | 4 |
| 25GDL4-11×13 | 4 | 143 | 7.5 | 4 |
| 40GDL6-12×3 | 6 | 36 | 7.5 | 1.5 |
| 40GDL6-12×4 | 6 | 48 | 7.5 | 2.2 |
| 40GDL6-12×5 | 6 | 60 | 7.5 | 2.2 |
| 40GDL6-12×6 | 6 | 72 | 7.5 | 3 |
| 40GDL6-12×7 | 6 | 84 | 7.5 | 3 |
| 40GDL6-12×8 | 6 | 96 | 7.5 | 4 |
| 40GDL6-12×9 | 6 | 108 | 7.5 | 4 |
| 40GDL6-12×10 | 6 | 120 | 7.5 | 4 |
| 40GDL6-12×11 | 6 | 132 | 7.5 | 5.5 |
| 40GDL6-12×12 | 6 | 144 | 7.5 | 5.5 |
| 50GDL12-15×2 | 12 | 30 | 7 | 2.2 |
| 50GDL12-15×3 | 12 | 45 | 7 | 3 |
| 50GDL12-15×4 | 12 | 60 | 7 | 4 |
| 50GDL12-15×5 | 12 | 75 | 7 | 5.5 |
| 50GDL12-15×6 | 12 | 90 | 7 | 5.5 |
| 50GDL12-15×7 | 12 | 105 | 7 | 7.5 |
| 50GDL12-15×8 | 12 | 120 | 7 | 7.5 |
| 50GDL12-15×9 | 12 | 135 | 7 | 11 |
| 50GDL12-15×10 | 12 | 150 | 7 | 11 |
| 50GDL18-15×3 | 18 | 45 | 7 | 4 |
| 50GDL18-15×4 | 18 | 60 | 7 | 5.5 |
| 50GDL18-15×5 | 18 | 75 | 7 | 7.5 |
| 50GDL18-15×6 | 18 | 90 | 7 | 7.5 |
| 50GDL18-15×7 | 18 | 105 | 7 | 11 |
| 50GDL18-15×8 | 18 | 120 | 7 | 11 |
| 50GDL18-15×9 | 18 | 135 | 7 | 15 |
| 50GDL18-15×10 | 18 | 150 | 7 | 15 |
| 65GDL24-12×2 | 24 | 24 | 6 | 3 |
| 65GDL24-12×3 | 24 | 36 | 6 | 4 |
| 65GDL24-12×4 | 24 | 48 | 6 | 5.5 |
| 65GDL24-12×5 | 24 | 60 | 6 | 7.5 |
| 65GDL24-12×6 | 24 | 72 | 6 | 7.5 |
| 65GDL24-12×7 | 24 | 84 | 6 | 11 |
| 65GDL24-12×8 | 24 | 96 | 6 | 11 |
| 65GDL24-12×9 | 24 | 108 | 6 | 15 |
| 65GDL24-12×10 | 24 | 120 | 6 | 15 |
| 80GDL36-12×2 | 36 | 24 | 5.5 | 4 |
| 80GDL36-12×3 | 36 | 36 | 5.5 | 5.5 |
| 80GDL36-12×4 | 36 | 48 | 5.5 | 7.5 |
| 80GDL36-12×5 | 36 | 60 | 5.5 | 11 |
| 80GDL36-12×6 | 36 | 72 | 5.5 | 11 |
| 80GDL36-12×7 | 36 | 84 | 5.5 | 15 |
| 80GDL36-12×8 | 36 | 96 | 5.5 | 15 |
| 80GDL36-12×9 | 36 | 108 | 5.5 | 18.5 |
| 80GDL36-12×10 | 36 | 120 | 5.5 | 18.5 |
| 80GDL54-14×2 | 54 | 28 | 5 | 7.5 |
| 80GDL54-14×3 | 54 | 42 | 5 | 11 |
| 80GDL54-14×4 | 54 | 56 | 5 | 15 |
| 80GDL54-14×5 | 54 | 70 | 5 | 18.5 |
| 80GDL54-14×6 | 54 | 84 | 5 | 18.5 |
| 80GDL54-14×7 | 54 | 98 | 5 | 22 |
| 100GDL72-14×2 | 72 | 28 | 4.5 | 11 |
| 100GDL72-14×3 | 72 | 42 | 4.5 | 15 |
| 100GDL72-14×4 | 72 | 56 | 4.5 | 18.5 |
| 100GDL72-14×5 | 72 | 70 | 4.5 | 22 |
| 100GDL72-14×6 | 72 | 84 | 4.5 | 30 |
| 100GDL72-14×7 | 72 | 98 | 4.5 | 3 |
